Extra Heavy Duty Non-Slip Textured Epoxy Coating
Industrial-grade two-part textured non-slip epoxy engineered for wet environments, caustic washdowns, and extreme traffic. Applied at 1/16”–1/8” thickness — incomparable to off-the-shelf non-slip paints.
USDA Approved • OSHA & ADA Compliant • Forklift RatedWhy This Non-Slip Epoxy Is Different
This coating cannot be compared to off-the-shelf non-slip paints that are single component and very thin. Those products offer moderate slip protection and inferior durability in commercial or industrial applications. You must use a two-component epoxy designed specifically for wet, caustic, high-traffic environments. Otherwise, you are wasting your time and money while creating a potentially hazardous condition.
Applied in one layer at about 1/16”–1/8” dried thickness of protection compared to most other products that are water-based and a fraction as thick. Low odor, nontoxic, superior water, impact, abrasion and chemical resistance.
Application flexibility: For heavy texture, apply with a phenolic core roller. For a less textured finish, apply with a flat squeegee. The squeegee application also increases coverage rate by up to 50 sq ft/gal and is recommended for rubber wheel and rubber track vehicle environments.
Common Applications
Priming & Surface Preparation
This coating is self-priming on concrete and steel. For additional adhesion on poor-condition concrete, steel, and diamond plate applications, we recommend priming first. Use the standard version primer or the Fast Dry Primer that dries in 1–2 hours versus 5–7 hours for the standard version. Priming first is also recommended for applications with a high volume of heavy traffic.
Can be applied over previous coatings that are not peeling off — existing paints and coatings should be sanded clean and roughed up. Can be applied indoors or outdoors.
Cove Base Option: See our Cove Base kits to provide a seamless transition from floor to wall so that the epoxy can be coated right across the floor and up the wall to form a waterproof tub for easy pressure washing.
Rubber wheels & tracks: We recommend the flat squeegee application which has a less aggressive finish and increased coverage. The roller application has a very aggressive finish that can wear out certain soft rubber tires and tracks.
For a flexible rubber non-slip epoxy floor coating, see our ArmorTrak Rubber Textured Epoxy.
Request A Quote for volume discounts.
Free Shipping on Orders $300+
Complete turnkey kits with everything needed for professional results. No prior experience required.
Call: (866) 532-3979 | Email: info@armorgarage.com
Apply at 40 sf/gallon. Coverage may vary according to application method and surface porosity. Allow 8 hrs to dry to the touch. Back to service with light traffic within 24hrs depending on temperature and humidity. Allow 48 hours for vehicle traffic.
Application Instructions
Mixing
This is an industrial grade product. Part B has a viscosity similar to Goop β itβs extremely thick. We recommend using a can opener to remove the lip from the top of the Part B can to make it easier to get all the material out.
Mix ratio is 4:1, but you can simply pour all of Part B into the Part A can and use a Jiffy mixer in a cordless drill. Mix until all the Part B is fully blended into the Part A, making sure to move the mixer all around the can.
Pot life is 30 minutes. Do not mix more than can be applied in about 20 minutes. Only one coat is required.
Application
Once mixed, pour in a bead from left to right and apply with a phenolic core roller or flat squeegee depending on the amount of texture desired.

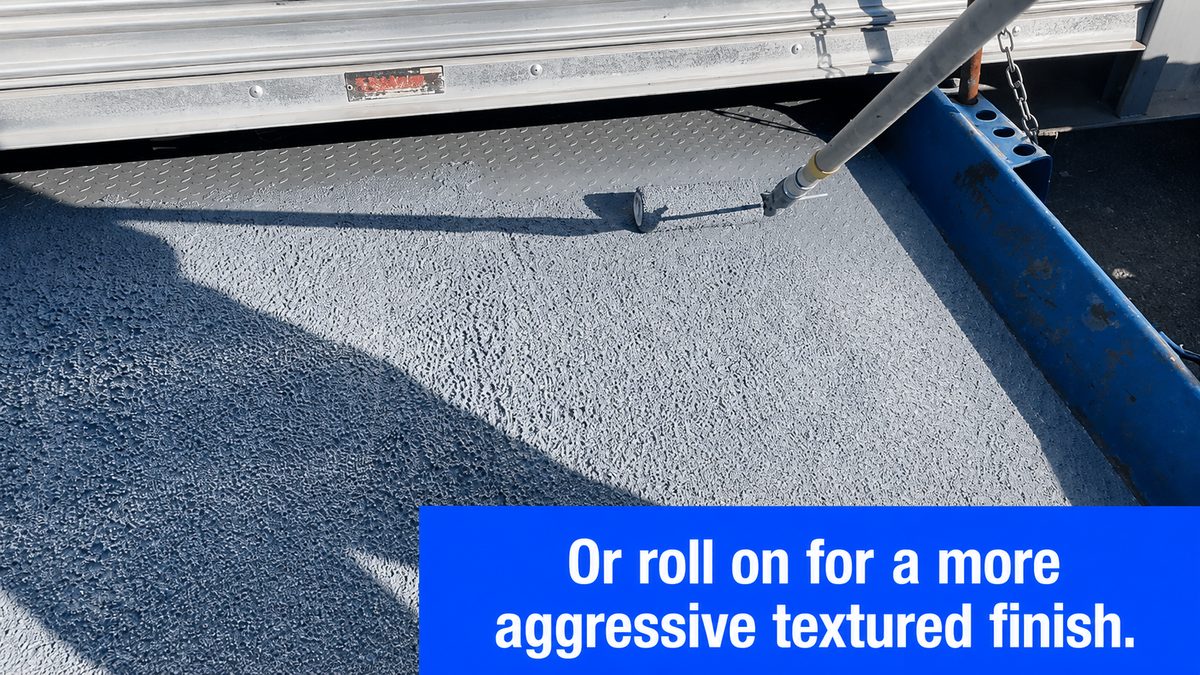

Roller application: Yields a more aggressive, heavily textured finish. Coverage is 30β40 sq ft/gal.

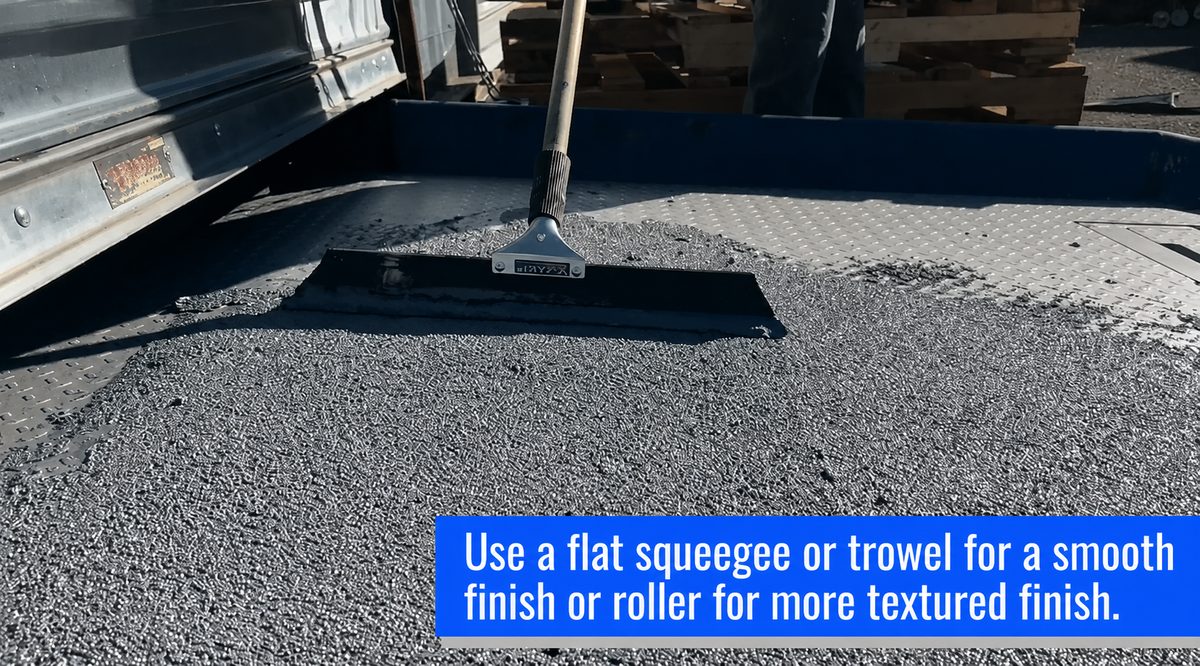

Squeegee application: Yields a less aggressive, smoother finish. Coverage is 40β50 sq ft/gal. Recommended for rubber wheel and track vehicles.
For best results, roll or squeegee in one direction as much as possible β avoid back and forth motions. Apply at the average rate of 40 sq ft/gal. Finish may have slightly uneven gloss depending on application; this is purely cosmetic and will not affect performance.
Drying & Return to Service
Product should be left to dry overnight and can be back in full service the next day.
Safety & Ventilation
Good ventilation is required when applying indoors. The use of a paint respirator is recommended.
Do NOT apply in the presence of open flames or sparks such as from unit heaters, welding, or torch cutting equipment.
Surface Preparation
Steel Surfaces
Steel should be clean with no rust or contaminants present on the surface ; if not it should be primed with our Steel Primer that can adhere to tight rust for an even thicker finish and to ensure permanent adhesion.
Concrete Surfaces
Acid wash twice with a strong solution of 2 parts water to 1 part muriatic acid. Then neutralize by sprinkling and lightly scrubbing in 1 lb of TSP powder per 1,000 sq ft of wet floor, then rinse thoroughly. Allow the floor to completely dry (minimum 24 hours).
Faster alternative: Diamond grind or shotblast the surface. This saves significant time by eliminating the wet floor dry-out period.
Oil Stain Removal
Remove oil stains with a combination of Liquid Tide scrubbed in with straight muriatic acid. Several applications may be needed depending on how deep the stain is. When water no longer turns a bluish rainbow color or beads up, the oil has been removed.
All surfaces must be clean, dry, and free of contaminants before application.
