Three Systems That Cover The Whole Facility
A prison, jail or secure mental health facility is really three buildings in one: housing units that get deliberately damaged, service areas that get driven on, and a kitchen that feeds hundreds of people three times a day. We make a system for each, and your own staff applies all of them.
Cells, dayrooms & patient rooms
Nano Particle Floor-To-Ceiling Epoxy
Standard paint and retail epoxies, even the ones labeled "industrial," chip under blunt force, and once an edge lifts an inmate can peel the rest off the wall. Our Nano Particle formulation cures to a tile-like hardness without tile's cracks or grout lines, resists blunt impacts and scratching, and bonds permanently to concrete, brick and masonry.
Most floor epoxies are too thin to stay on a wall and run on a ceiling. This one holds on vertical and overhead surfaces with no drips or sags, so one product encapsulates the entire cell in a single pass. Three standard colors.
- Poreless and seamless: nowhere for contraband, moisture or bacteria to collect
- Takes repeated caustic power scrubbing without dulling or delaminating
- Low VOC for occupied housing units
Shop Floor-To-Ceiling Epoxy →
Sally ports, corridors, laundries & loading docks
Heavy Tonnage Epoxy System
Vehicle sally ports, service corridors, laundries, loading docks and maintenance shops get driven on, dragged across and hosed down every day. Heavy Tonnage is the toughest, longest-lasting floor coating we make: 30 mils thick, ten times a conventional floor enamel, with a Shore D hardness above a construction hard hat.
We tested it by running forklifts in circles with the forks angled down into the floor. No damage. It goes over existing sound coatings, which cuts prep, and comes in a no-odor formulation for occupied buildings.
- Seamless, non-porous, chemical and stain resistant
- Built for repetitive rolling loads and dropped equipment
- Two layers: primer plus special epoxy topcoat
Shop Heavy Tonnage Epoxy →
Kitchens, cafeterias, dish rooms & food storage
Commercial Kitchen Epoxy
An institutional kitchen runs harder than a restaurant's. It feeds the whole population three times a day, gets washed down with caustic cleaners every night, and the floor underneath is usually cracked quarry tile with grout lines full of grease. Our Commercial Kitchen Epoxy installs at 25 to 30 mils over that tile with no tear-out, and cures to a seamless, waterproof, Shore D 90 surface that is USDA approved for all food service applications.
It takes hot oil splashes up to 350°F and repeated thermal shock from hot spills, shrugs off caustic washdowns and heavy chemical exposure, and is self-extinguishing. Add our non-slip additive for the cook line and dish room and a cove base kit at the wall joints, and the kitchen passes inspection with a floor that doesn't harbor bacteria, mold or mildew.
- Impact resistance to 160 ft-lbs for dropped pots, racks and carts
- Goes over quarry, ceramic and porcelain tile with our bonding primer
- Light use after an overnight cure; fast-dry primer option for tight shutdowns
Shop Commercial Kitchen Epoxy →
What An Institutional Surface Has To Survive, And How We Build For It
Correctional, detention and secure mental health facilities are the hardest environment a coating will ever see, because the damage is intentional and the cleaning is relentless. Here is what we engineer for.
Survives intentional damage
Cells and patient rooms take kicks, punches, gouges and thrown furniture. Our Nano Particle epoxy is built for blunt-force impact and cures to a tile-like hardness without tile's weakness: it doesn't crack or chip.
Nothing to pick, peel or hide in
The coating bonds permanently to concrete, brick and masonry and cures poreless and seamless. There is no edge to lift, no crack to work at, and no place for contraband, moisture or bacteria to collect.
Takes caustic power-scrubbing
Institutions pressure wash with caustic cleaners on a schedule. Our coatings are chemical resistant and can be power scrubbed repeatedly without dulling, softening or delaminating. That is where the maintenance savings come from.
Applied by your own staff
Every product on this page is roller applied by maintenance staff with no coating experience, and ships free as a complete turnkey kit. No contractors means no background checks, escorts or tool counts, and roughly 75% less than contractor-installed pricing.
Repairs that stay repaired
Cementitious filler pops out under the next impact. Our epoxy floor and wall patch compounds bond into the hole and resist hammer blows once cured. The fast-set version reaches full cure in one hour, so a cell or corridor goes back in service the same shift.
Kitchens that pass inspection
Grease-filled grout lines and cracked quarry tile fail health inspections and breed bacteria. Our Commercial Kitchen Epoxy seals the whole floor into one USDA-approved surface that takes 350°F hot oil, thermal shock and nightly caustic washdowns.
Permanent Repairs, Railings, Piping & Cooling Towers

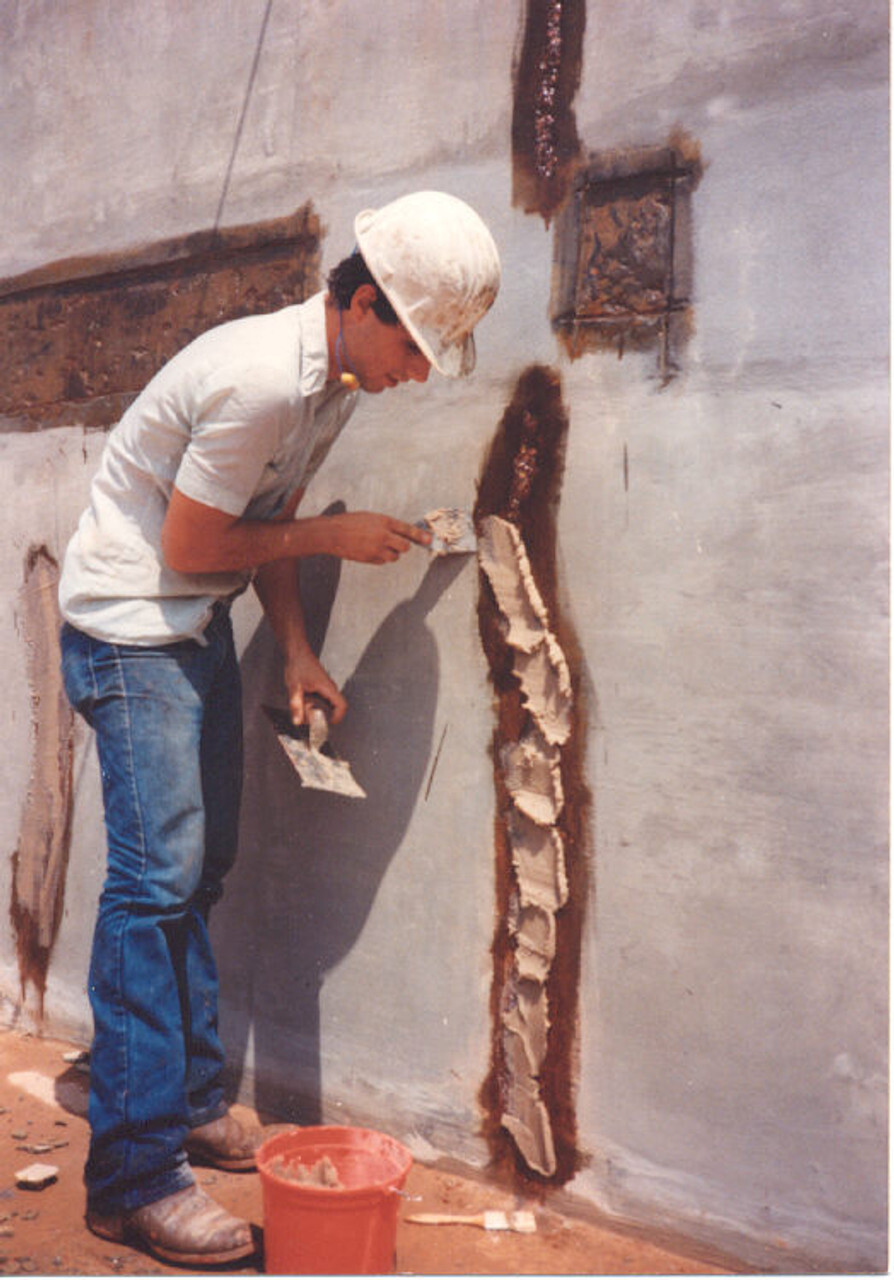

Fast Set Concrete Epoxy Patch fills gouges and holes in cell walls and floors with a permanent, hammer-resistant repair that fully cures in one hour. The floor-to-ceiling epoxy goes right over it the same day, so there is no second shutdown.
Steel Pipe & Metal Equipment Epoxy is an extra-thick direct-to-metal mastic that goes over old paint and tight rust with light prep and no sandblasting, applies three times thicker than standard steel paint in one coat, and rounds over sharp corners and weld seams on railings, bars, doors and piping, which takes away corrosion points and injury points at the same time. All standard and safety colors.
Our Cooling Tower Epoxy fills cracks and holes on vertical and horizontal surfaces and cures underwater, which beats replacing the tower. For fencing, gates and exterior steel, use our Outdoor Industrial Metal Epoxy.
Correctional & Institutional Coatings: Questions We Get Asked Most
As the manufacturer of every type of epoxy coating there is, we know what survives a housing unit and what gets peeled off the wall in a week.
What is the best floor and wall coating for a prison or jail?
+−
For cells, dayrooms, patient rooms and common areas, our Nano Particle Floor-To-Ceiling Epoxy. It gives you extreme impact and abrasion resistance, tile-like hardness without tile's cracking or grout lines, a poreless surface that tolerates caustic power scrubbing, and a permanent bond to concrete, brick and masonry.
For service corridors, laundries, loading docks and vehicle sally ports, use Heavy Tonnage Industrial Epoxy, the toughest and longest-lasting floor coating we make. For the kitchen, use our Commercial Kitchen Epoxy.
Can the same epoxy be used on cell walls and ceilings, not just floors?
+−
Yes, that is exactly what the Nano Particle product is formulated for. Most floor epoxies are too thin to stay on a wall and run or sag on a ceiling. This one holds on vertical and overhead surfaces with no drips or sags, so a full cell or patient room is encapsulated in one pass with one product. It comes in three standard colors.
Will it hold up when inmates or patients deliberately try to damage it?
+−
Standard paint and retail residential epoxies, including the ones labeled "industrial" or "heavy duty," fail in institutions. They chip under blunt force, and once an edge lifts the rest can be peeled off. Our Nano Particle coating resists blunt force and scratching, cures poreless and bonds permanently. If damage reaches the concrete or block, our wall and floor patch compounds make a permanent, hammer-resistant repair that can be recoated the same day.
Can our facility maintenance staff apply it, or do we need a contractor?
+−
Your staff can apply every product on this page. Fewer contractors means fewer background checks, escorts and tool counts, which is where the roughly 75% savings over contractor-installed pricing comes from. Everything is roller applied and ships free as a complete turnkey kit with instructions, and our coating experts walk your crew through prep and application. The mechanical room pictured on this page was coated entirely by in-house staff.
Can coated walls and floors be sanitized with caustic cleaners and pressure washers?
+−
Yes. Our institutional coatings are chemical resistant and can be power scrubbed with caustic cleaners on a routine schedule without damage. Because the cured surface is poreless and seamless, there are no grout lines, cracks or paint texture for contamination to collect in, which cuts cleaning time and chemical use.
How do we permanently fix gouges and holes in cell walls and floors?
+−
Use an epoxy patch compound, not cementitious filler, which pops out under the next impact. Our concrete floor and wall patches bond into cracks and holes, won't chip, crack or spall, and resist hammer impact once cured. For areas that can't stay offline, the Fast Set Concrete Epoxy Patch reaches full cure in one hour and the floor-to-ceiling epoxy can go on right after.
What floor coating do you use in a prison or institutional kitchen?
+−
Our Commercial Kitchen Epoxy. An institutional kitchen feeds the whole population three times a day and gets washed down with caustic cleaners every night, and it usually sits on cracked quarry tile with grout lines full of grease. The kitchen epoxy goes over that tile with our bonding primer, no tear-out, and cures to a seamless, waterproof, Shore D 90 surface that is USDA approved for all food service applications.
It takes hot oil splashes up to 350°F, repeated thermal shock from hot spills, heavy chemical exposure and 160 ft-lbs of impact, and it is self-extinguishing. Order it with the non-slip additive for the cook line and dish room and a cove base kit for the wall joints, and the kitchen passes inspection with a floor that doesn't harbor bacteria, mold or mildew. Light use after an overnight cure; a fast-dry primer is available when the shutdown window is tight.
What about mechanical rooms, piping, railings and cooling towers?
+−
Our direct-to-metal epoxy mastic covers most of it. It goes over old coatings and tight rust with light prep and no sandblasting, applies three times thicker than standard steel paint in a single coat, cures to a rock-hard, tile-like finish, and rounds over corners and welds to remove corrosion points and injury points. All standard and safety colors.
Our Cooling Tower Epoxy fills cracks and holes on vertical and horizontal surfaces and cures underwater, which beats replacing the tower. For fencing, gates and exterior steel, use our Outdoor Industrial Metal Epoxy.
Send Us Your Areas And Square Footage. We'll Build The Order.
Tell us which units, corridors, kitchen and mechanical areas you're coating, roughly how many square feet each, and whether your own staff is applying it. ArmorGarage will spec the system for every zone, size the kits, and quote volume pricing for the facility or the whole agency. Do it right the first time and have it last longer.
