AG603X Heavy-Duty Epoxy Bed Liner Coating
AG603X is a two-component, heavy-duty non-skid epoxy bed liner for steel truck surfaces — interior or exterior — delivering slip resistance in wet conditions plus superior impact, abrasion, and chemical resistance that won't chip or peel.
What is AG603X Heavy-Duty Epoxy Bed Liner?

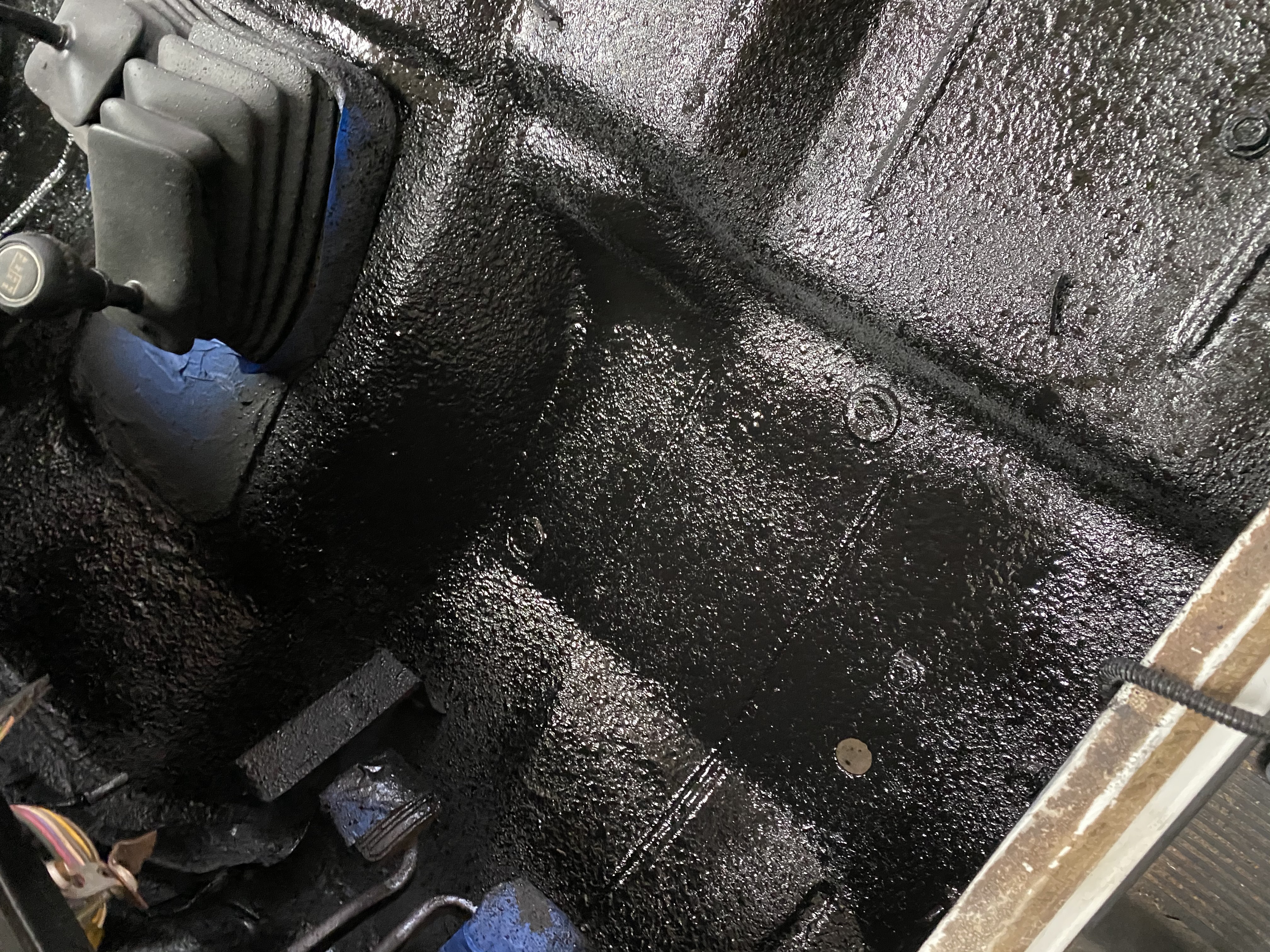

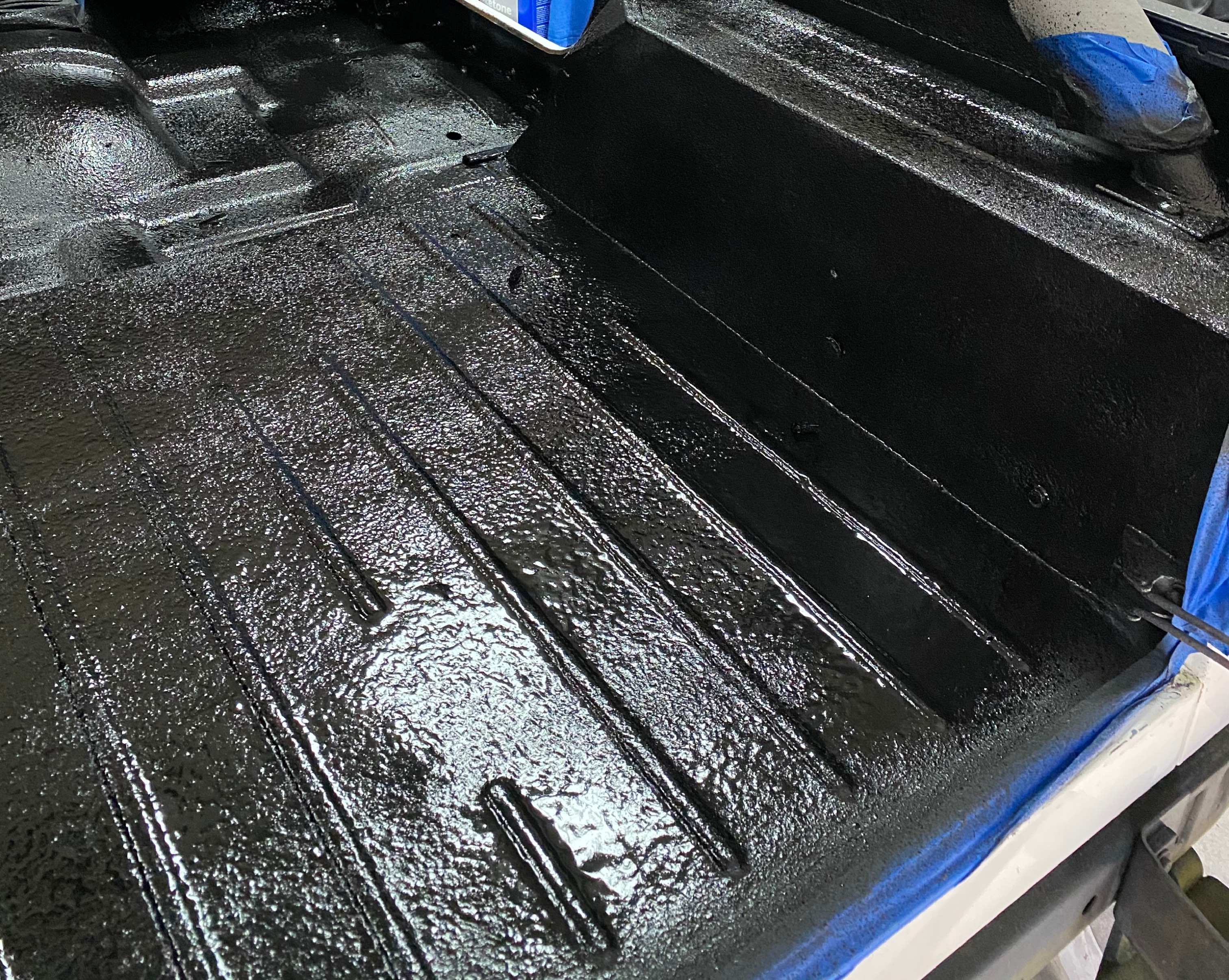

AG-603X is a two-component, heavy-duty non-skid epoxy bed liner designed for heavy-duty and industrial bed liner applications. It provides slip resistance in wet and slippery conditions while exhibiting superior impact and abrasion resistance. Ideal for all steel truck surfaces, whether interior or exterior.
Key features
Two finish textures to choose from

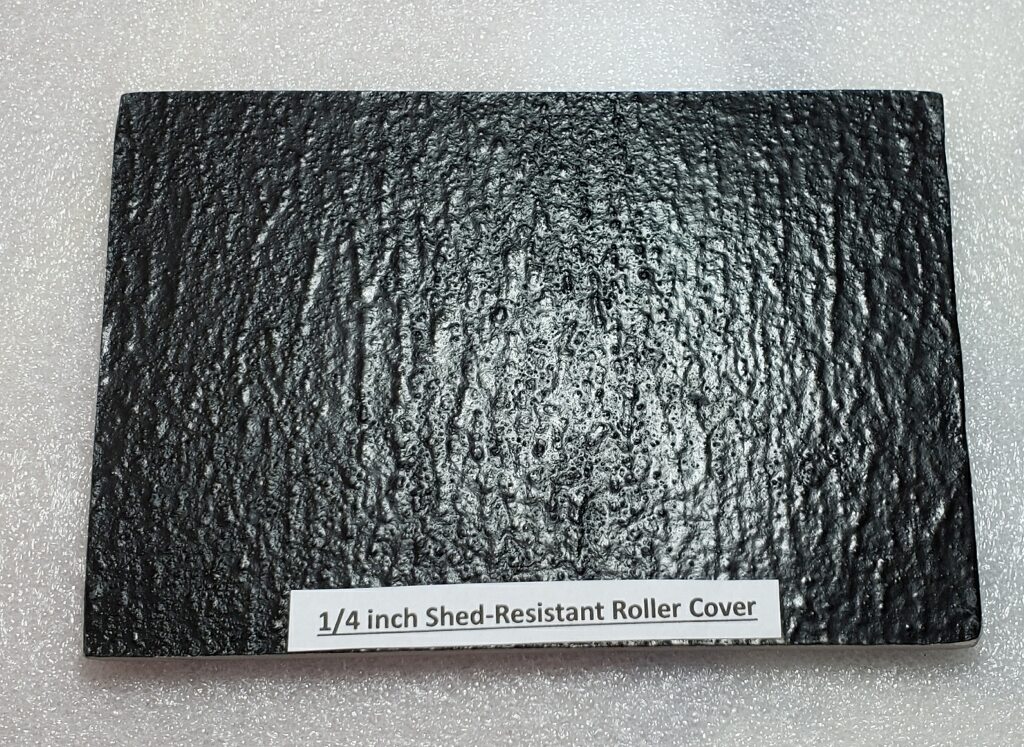

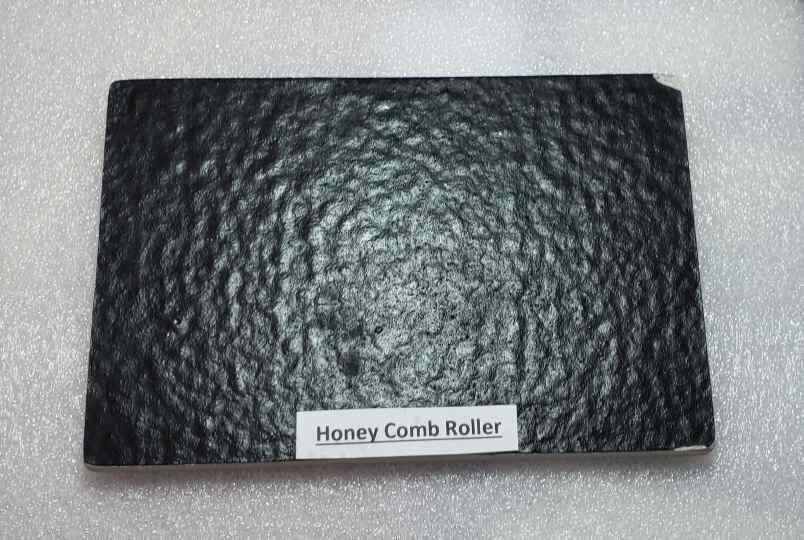

Apply with a honeycomb roller cover or a ¼″ nap lint-free roller cover — each produces a different non-skid texture.
How do you apply it?
Surface prep is critical for proper adhesion. Remove all dirt, grease, oil, soil, chemical contaminants and other matter. The surface must be free of any salt contamination. Scuff the surface with a drill-mounted Mushroom Scuff Pad, then wipe clean.
Mix 4 parts Base (Part A) to 1 part Hardener (Part B) with a 400–600 RPM variable-speed drill and Jiffy mixer. Use immediately after mixing — no induction time is needed.
Apply with a honeycomb roller cover or ¼″ nap lint-free roller cover. Immediately after mixing, pour a ribbon onto the surface. Do not over-roll — this can decrease the non-skid. Roll in one direction only and strike off any excess build-up on edges from roller lap. Spread rate is approximately 120 sq ft per gallon. Do not apply if the surface temperature is within 5° of the dew point.
How long does it take to cure?
Heavy traffic: 48 hrs
Heavy traffic: 72 hrs
Heavy traffic: 96 hrs
Technical data
Chemical resistance (splash & spillage)
AG603X resists splash and spillage of:
AG603X Base is flammable; the Hardener is corrosive. Keep away from all sources of ignition during mixing, application and cure. Base and Hardener can cause eye and skin burns and allergic reactions — use goggles, fresh-air masks or NIOSH-approved respirators, protective gloves and protective clothing. Sold without warranty as to performance, expressed or implied; users should make their own tests to determine suitability for their conditions. See the Safety Data Sheet for full safety precautions. For professional and industrial use only. Keep away from children.
