Extra Heavy Duty Non-Slip Textured Epoxy Coating
The only industrial-grade two-part textured non-slip epoxy thick enough to actually stop slips in wet, caustic, and heavy-traffic environments. Installs at 1/16”–1/8” dried thickness — that’s 5–10x thicker than standard coatings.
USDA Approved • OSHA & ADA Compliant • FREE SHIPPING ON ORDERS $300.00 OR MOREWhy This Non-Slip Epoxy Is in a Completely Different Category
If you’re comparing this to off-the-shelf non-slip paints, stop — they’re not the same product. Those are single-component coatings that go on paper-thin, don’t provide industrial-grade traction, and break down within months under real commercial use. Here’s how they compare:
Hardware Store Non-Slip Paint
- Single component, water-based
- 2–4 mils thickness (paper thin)
- Wears through in months
- Minimal chemical resistance
- Not rated for forklift traffic
- 50–60°F minimum application
- No USDA or Mil-Spec ratings
AG650X Non-Slip Epoxy
- Two-component industrial epoxy
- 60–125 mils (1/16”–1/8”) thickness
- Lasts years under heavy traffic
- Full chemical & acid resistance
- Forklift & heavy equipment rated
- Low temp version down to 25°F
- USDA, OSHA, ADA, Navy Mil-Spec
Two texture options: For maximum grip, apply with a phenolic core roller for a more aggressive finish. For a less aggressive finish (recommended for rubber-wheel and rubber-track vehicles), apply with a flat squeegee — this method also increases coverage up to 50 sf/gal.
What Makes This the Right Choice
Works on Concrete, Steel, and Improves Diamond Plate Traction
Self-priming on concrete or wood and most steel surfaces. For maximum adhesion on marginal steel surfaces or diamond plate, use the steel primer option.
Waterproof Washdown-Ready Surface
Creates an impervious barrier against water, mold, mildew, and bacteria. Add our Cove Base kit for a seamless floor-to-wall seal that turns your floor into a waterproof tub for pressure washing.
Install It Yourself — No Contractor Needed
Complete turnkey kits include everything you need. Apply with a roller or squeegee in a single coat. Available in 1-gallon and 5-gallon sizes. Coverage: 30–40 sf/gal (roller) or 40–50 sf/gal (squeegee).
PLEASE NOTE: DUE TO THE UNIQUE MANUFACTURING PROCESS OF THIS MATERIAL REQUIRES IT TO BE MADE IN SPECIALIZED BATCHES AND IS NONRETURNABLE
Priming & Surface Preparation
For maximum adhesion on concrete we recommend an acid etching, shot blasting or diamond grind. For wood, sand surface to clean and rough up.
Can be applied directly over existing coatings that are still bonded and not peeling — sand the surface clean and rough it up first. Works indoors and outdoors.
Cove Base Option: Our Cove Base kits create a seamless floor-to-wall transition so the epoxy coats across the floor and up the wall, forming a waterproof tub for easy pressure washing. Ideal for kitchens, processing plants, and any washdown environment.
Rubber wheels & tracks: Use the flat squeegee application for a less aggressive texture and increased coverage. The roller method produces a very aggressive profile that can accelerate wear on soft rubber tires and tracks.
Steel & metal surfaces: While this epoxy bonds directly to steel, some smooth steel surfaces such as diamond plate can be hard to bond to. Choosing the steel primer option eliminates this issue entirely and provides increased traction over bare diamond plate.
Non-Slip Epoxy Questions, Answered
Is epoxy flooring slippery when wet?
Standard smooth epoxy can be slippery when wet or oily — which is exactly why textured non-slip epoxy exists. A true non-slip epoxy carries its texture through the full thickness of the coating, so the grip doesn’t wear away like broadcast grit sprinkled on top of ordinary paint. Installs at 1/16”–1/8” thick and exceeds OSHA, ADA, and USDA slip-resistance standards even in wet, greasy, and caustic washdown environments.
What is the best non-slip coating for concrete floors?
For commercial and industrial concrete, a two-component textured epoxy applied at 60+ mils outperforms every other option. Single-component non-slip paints go on at 2–4 mils and wear through in months under real traffic; a full-thickness textured epoxy lasts years under forklifts, steel wheels, and daily washdowns while keeping its traction.
How do you fix slippery diamond plate or steel decking?
Coat it with a textured non-slip epoxy. Worn diamond plate is one of the most common slip hazards in industrial settings — the raised pattern polishes smooth over years of traffic. This coating bonds directly to most steel surfaces and restores more traction than the original plate had new. On smooth bare metal plate or diamond plate, prime first with the steel primer to provide maximum adhesion.
How thick should a non-slip floor coating be?
For industrial use, 1/16” to 1/8” (60–125 mils) of dried thickness. That’s what allows the texture to survive years of traffic instead of wearing flat. Hardware-store non-slip paints apply at 2–4 mils — 5–10x thinner — which is why they lose their grip within months in any working environment.
Can you apply non-slip epoxy in cold weather?
Yes — with the right formulation. Our low-temperature version applies outdoors at temperatures as low as 25°F, compared to the 50–60°F minimum required by standard coatings. That makes winter application possible on loading docks, ramps, and exterior walkways when slip protection is needed most.
Should I use the roller or squeegee application method?
Roller for maximum grip, squeegee for rubber wheels. The phenolic core roller produces an aggressive high-traction profile at 30–40 sf/gal — ideal for foot traffic, forklifts, and wet areas. The flat squeegee produces a smoother texture at 40–50 sf/gal that’s easier on soft rubber tires and tracks.
What does USDA approved mean for a floor coating?
It means the cured coating is acceptable for use in federally inspected food and beverage facilities. Combined with its seamless waterproof surface and our Cove Base kit for floor-to-wall transitions, it creates a sanitary washdown-ready floor for commercial kitchens, processing plants, and bottling facilities.
Want to see and feel the texture before you buy? Email us or call (866) 532-3979 to request a physical sample piece.
Looking for a flexible rubber non-slip coating instead? See our ArmorTrak Rubber Textured Epoxy — ideal for areas requiring a softer, rubber-like texture.
Request A Quote for volume discounts on orders of 25+ gallons.
DO YOUR PROJECT RIGHT THE FIRST TIME WITH ARMORGARAGE!
No prior experience needed for professional results. No contractor required.
Call: (866) 532-3979 | Email: info@armorgarage.com
Apply at 40 sf/gallon. Coverage may vary according to application method and surface porosity. Allow 8 hrs to dry to the touch. Back to service with light traffic within 24hrs depending on temperature and humidity. Allow 48 hours for vehicle traffic.
Application Instructions
Mixing
This is an industrial grade product. Part B has a viscosity similar to Goop — it’s extremely thick. We recommend using a can opener to remove the lip from the top of the Part B can to make it easier to get all the material out.
Mix ratio is 4:1, but you can simply pour all of Part B into the Part A can and use a Jiffy mixer in a cordless drill. Mix until all the Part B is fully blended into the Part A, making sure to move the mixer all around the can.
Pot life is 30 minutes. Do not mix more than can be applied in about 20 minutes. Only one coat is required.
Application
Once mixed, pour in a bead from left to right and apply with a phenolic core roller or flat squeegee depending on the amount of texture desired.
Squeegee application: Yields a less aggressive, smoother finish. Coverage is 40–50 sq ft/gal. Recommended for rubber wheel and track vehicles.
Roller application: Yields a more aggressive, heavily textured finish. Coverage is 30–40 sq ft/gal.

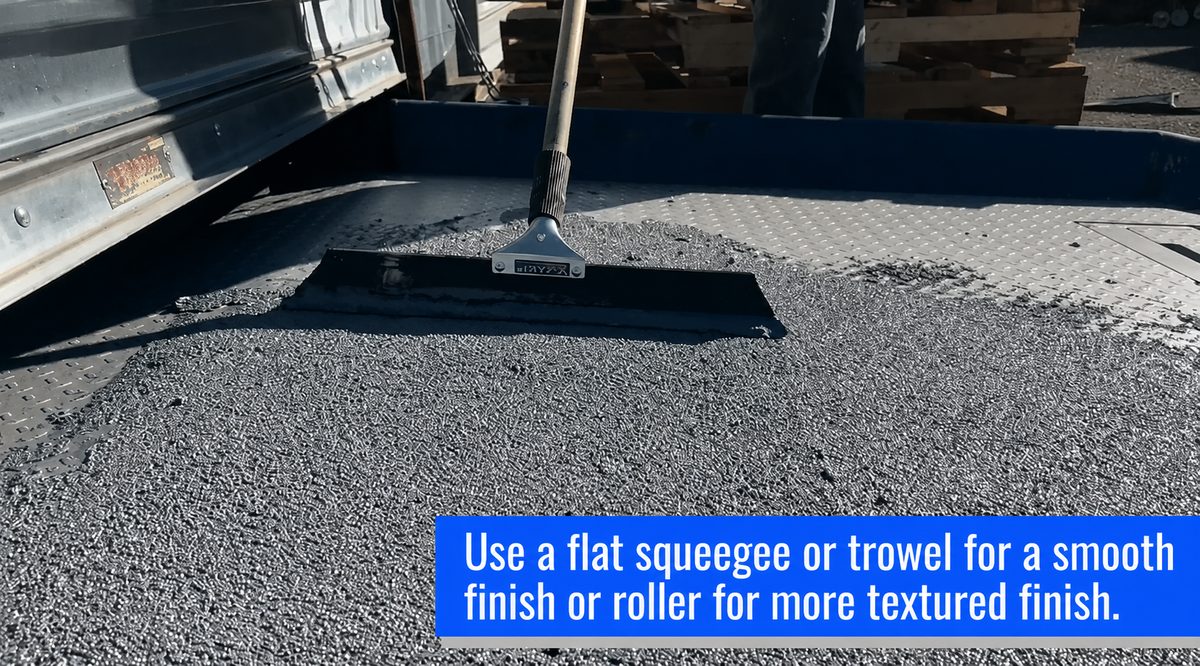

Squeegee application — smoother finish, higher coverage · tap to enlarge

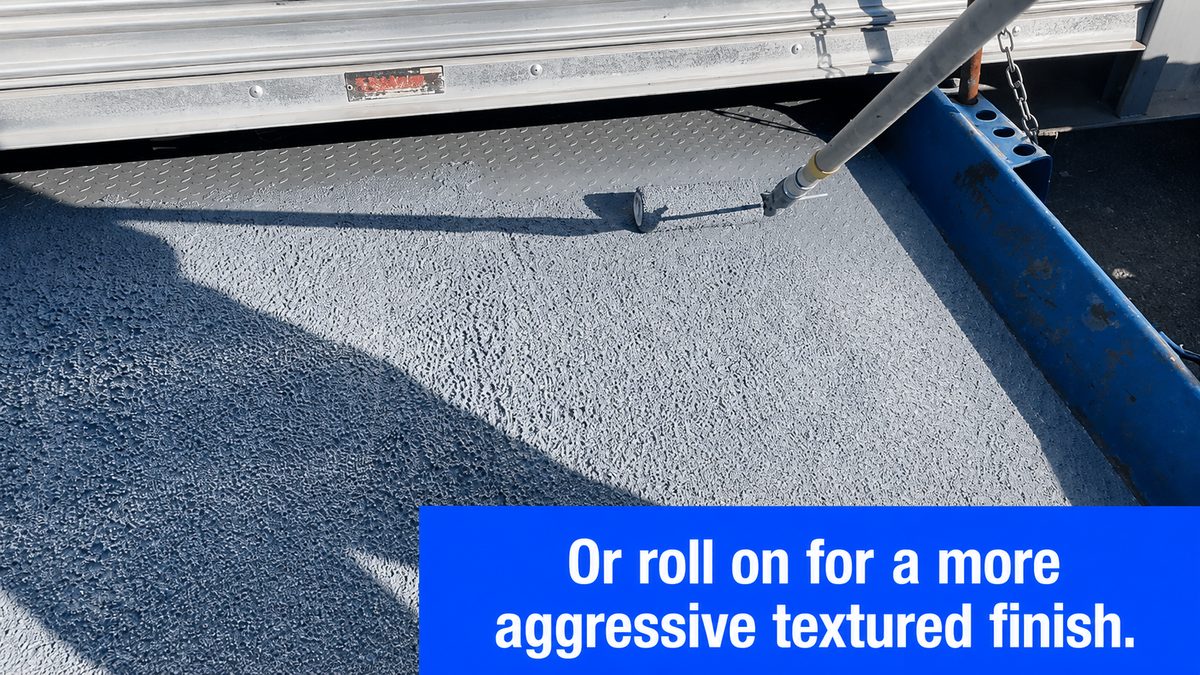

Roller application — aggressive textured finish · tap to enlarge
For best results, roll or squeegee in one direction as much as possible — avoid back and forth motions. Apply at the average rate of 40 sq ft/gal. Finish may have slightly uneven gloss depending on application; this is purely cosmetic and will not affect performance.
Drying & Return to Service
Let dry overnight — the floor is back in service for non-vehicle traffic the next day. Allow 48–72 hours before full service, depending on applied thickness and temperature conditions. Cooler temperatures and heavier builds need the longer end of the range.
Safety & Ventilation
Good ventilation is required when applying indoors. The use of a paint respirator is recommended.
Do NOT apply in the presence of open flames or sparks such as from unit heaters, welding, or torch cutting equipment.
Surface Preparation
Steel Surfaces
Steel should be clean with no loose rust or contaminants present on the surface; smooth steel such as flat plate or diamond plate should be primed with the steel primer first to ensure permanent adhesion.
Diamond plate & steel: apply the steel primer first and let dry to the touch (approx. 1 hour) · tap to enlarge
Concrete Surfaces
Acid wash twice with a strong solution of 2 parts water to 1 part muriatic acid. Then neutralize by sprinkling and lightly scrubbing in 1 lb of TSP powder per 1,000 sq ft of wet floor, then rinse thoroughly. Allow the floor to completely dry (minimum 24 hours).
Faster alternative: Diamond grind or shotblast the surface. This saves significant time by eliminating the wet floor dry-out period.
Oil Stain Removal
Remove oil stains with a combination of Liquid Tide scrubbed in with straight muriatic acid. Several applications may be needed depending on how deep the stain is. When water no longer turns a bluish rainbow color or beads up, the oil has been removed.
All surfaces must be clean, dry, and free of contaminants before application.
