How Thick Is Epoxy Flooring?

When it comes to creating a durable, high-performance surface for your garage, basement, or commercial space, epoxy flooring continues to lead the way. Known for its strength, chemical resistance, and high-gloss finish, epoxy transforms ordinary concrete floors into showroom surfaces that stand up to the toughest conditions. But one of the most frequently asked questions is: How thick is epoxy flooring supposed to be?

The answer isn’t as straightforward as giving a single number. The epoxy floor thickness depends on the system you’re using, the environment it’s installed in, and the performance level you want to achieve. Whether you’re applying a decorative coating for your home garage or a heavy-duty epoxy system for an industrial area, understanding the right thickness ensures you get the maximum durability and long-term protection your space needs.

This guide explains everything you need to know about epoxy flooring thickness, including why it matters, typical thickness ranges, and how Armor Garage provides the right system for your project.

Understanding Epoxy Flooring

Before diving into measurements, let’s revisit what epoxy flooring really is. Epoxy is not paint. While paint simply coats the surface, epoxy chemically bonds with the concrete floor, creating a dense, seamless surface. This bond makes it incredibly durable, resistant to chemical spills, impacts, and heavy traffic.

ArmorGarage offers 100% solids epoxy systems that are military grade, meaning they contain no water or solvents that evaporate during curing and use only the highest performance materials available. Unlike cheaper coatings or paints, what you apply is what you get. This allows for a thicker, stronger coating that lasts for years without peeling or wearing thin.

Know that all 100% solids epoxies are not equal, just because a product states it's 100% solids doesn't mean its a good quality product. There are fake 100% solids offered in the market place that are easy to spot, it's when they're not 100% solids in both weight and volume, you can see this right away in their specifications. The other factor is harder to know because it's hidden, that is, what is the quality of the ingredients that went into making that 100% product? Many products used low quality imported materials to manufacture their epoxy. Our 100% solids epoxy is 100% USA made with 100% military grade resins and hardeners. It makes a huge difference. As with any product you can buy, many are similar but there are clear differences in performance depending on the grade of materials used to make the product. Also know that high solids aren't good enough, we use them strictly as primers and never as an actual epoxy layer. Roll on a high solids versus our 100% military grade epoxy and the difference is night and day. The high solids epoxy is like water in comparison!

Why Thickness Matters for Epoxy Floors

When considering an epoxy floor coating, thickness plays a big role in how the floor performs. A thin epoxy coating may look good initially, but it can wear down faster, especially in high-traffic areas. If adding color flakes, the flakes displace some of the epoxy, so if you're starting off with a thin layer it gets thinner under the flakes. It's why many epoxies suffer from hot tire lifting, they don't have the critical mass to absorb the heat of your tires.  Remember we are talking about coatings and even though our epoxy systems are among the thickest there are, they're still thin when compared to the physical material world as they're measured in mils versus millimeters, big difference. A thicker epoxy coating provides extra impact resistance and durability, protecting against scratches, abrasion, and daily use. Suffice it to say thicker is just better.

For example, in a home garage, you may only need enough thickness to handle cars with light traffic. But for a warehouse or commercial kitchen, the floor must withstand forklifts, heavy carts, and constant cleaning, requiring a much  thicker epoxy floor. If you’re using color flakes in your garage epoxy you want a thick epoxy  for the flakes to embed into. Thin water based epoxies get thinner when the flakes embed themselves leaving a very thin layer on the concrete which  can reliquefy under hot tires and then resolidify onto your tires when it cools back down. Then the next time you pull your car out of your garage part of your new epoxy floor will be going along for the ride. Getting this balance right ensures your investment delivers maximum protection without unnecessary material or labor costs. Talk to an ArmorGarage expert about exactly what you’re using your floor for, and they will guide you to the right epoxy product.

How Thick Is Epoxy Flooring on Average?

The thickness of an epoxy floor varies based on the type of system. Here’s a general guideline:

• Thin epoxy coating: About 2-4 mils. Usually, water-based products that are for light-duty decorative finishes with foot traffic only.
• Standard garage floor epoxy: Around 5-9 mils. Good for short-term light residential garage usage.
• Heavy-duty epoxy systems: 20-35 mils. These are used for multi-decade usage in garages and for heavy commercial or industrial spaces, often combined with epoxy aggregates for added strength.

Keep in mind that one mil = 1/1000th of an inch. So when you read “20 mils,” that’s only about half a millimeter thick, which is very thick in the paint world. As an example, oil-based enamels are only 2 mils thick.

How Thick Can You Pour Epoxy?

Another common question is: How thick can epoxy be poured at one time? For standard applications, epoxy coatings are applied in layers rather than a single thick pour. Why? Because applying too much at once can lead to very rapid and improper curing. Our 100% solids epoxy systems can be applied much thicker than water-based coatings, but even then, the process involves multiple layers of primer, epoxy, and topcoat to achieve the desired build. With each layer playing a specific role, the primer's job is to penetrate the open pores in the slab that you create during your floor prep, and then lock into those pores forming an unbreakable bond. The epoxy's job is to form the sturcural strength of the epoxy system, thick of it as the concrete foundation. Then the topcoat's job is to provide UV stability and abrasion resistance, chemical resistance, stain resistance and finally a super high gloss finish. As opposed to a polyurea which is a single component product that does all of the above in one product and is why they are not as good as high quality epoxy systems.

If you need even thicker coatings, ArmorGarage has options like self-leveling urethane mortar that can be applied up to a ¼” thick for high-impact areas or where health departments require it for food prep areas. These allow you to achieve a thicker epoxy floor without compromising quality. when fully cured you can drive a tank on one of our urethane cement floors.

Read more: How Long Does an Epoxy Floor Last?

Surface Preparation Matters

While this guide focuses on thickness, the best epoxy system also relies on proper surface preparation. Concrete must be clean, dry, and properly profiled for the epoxy to bond. If the surface isn’t prepped correctly, even a thick coating won’t perform well. ArmorGarage kits include everything you need for prepping your concrete floor, ensuring a secure bond, and a flawless finish.

Recommended Thickness by Application

Here’s what works best in different settings:

• Home Garage Floors: 20 mils. This gives excellent durability for SUVs, cars, motorcycles, and light-duty work.
• Commercial Kitchens: 30 mils or more, often with added texture for slip resistance.
• Industrial Spaces: 25-30 mils with tubular aluminum additive for maximum strength and slip resistance.
• Metallic Epoxy Designs: Thickness depends on design, but usually around 30–35 mils for color depth and a glass-like finish.

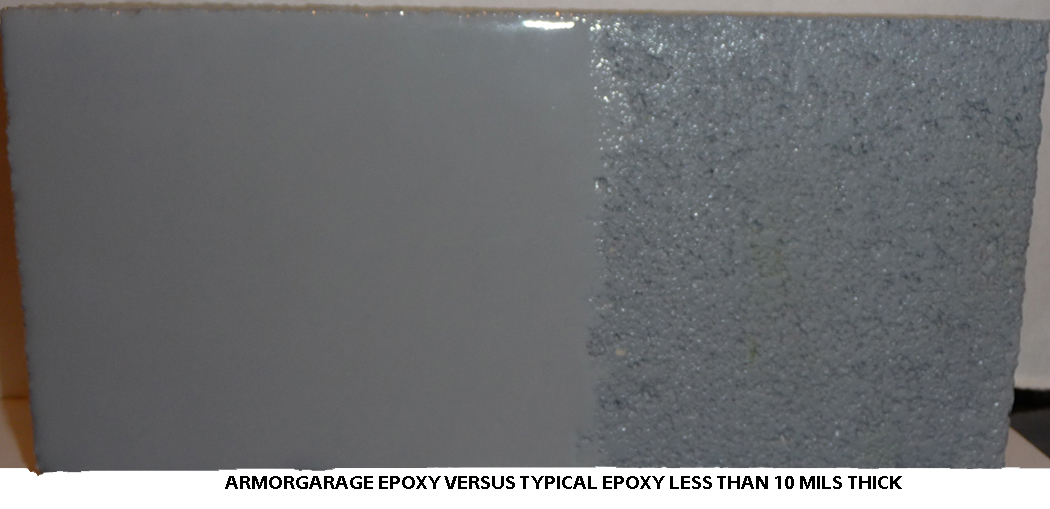

Thin vs. Thick Epoxy Floors

The difference between a thin epoxy coating and a thicker epoxy floor goes beyond looks. Thin coatings are fine for light-duty areas but won’t last long under even normal use. Thicker systems provide structural strength, making them ideal for environments where safety and durability matter most.

With ArmorGarage products, you can select the desired thickness tailored to your specific needs, without compromising on quality. Our DIY epoxy kits give you the same professional-grade results, without hiring anyone else.

The Science Behind Optimal Thickness

Epoxy systems aren’t just about looks, they’re about performance. Applying the recommended thickness ensures resistance to abrasion, chemicals, and moisture. It also helps create a non-porous surface, which prevents stains and makes cleaning easier.

Choosing the Right Kit for Your Project

At ArmorGarage, we make it easy to get the perfect thickness for your project. Whether you need a garage floor epoxy coating, a decorative metallic epoxy system, or a heavy-duty resin flooring system, our kits are designed to deliver long-lasting performance and unmatched durability. With complete instructions included, you’ll achieve a seamless epoxy floor without the cost of hiring installers. See the how to epoxy a garage floor, our step-by-step guidance ensures a professional finish every time.

Final Thoughts on Epoxy Flooring Thickness

When it comes to how thick epoxy flooring should be, there’s no single answer. The ideal thickness depends on your space, your traffic level, and your performance goals. Whether you want a showroom-worthy garage or an industrial-strength surface, choosing the right system and applying it at the optimal thickness is the key to success. It's why we offer so many different epoxy xystems, each one is tailored for specific projects and industries.

ArmorGarage provides everything you need to get it done right the first time. From 100% military-grade solids epoxy coatings to thicker mortar-type floors for heavy-duty environments, our products are engineered for results that last for years. If you're looking for additional solutions, check out our garage floor mats for enhanced protection or explore our premium pool paints to give your pool a durable finish. We also offer excellent products for wood decks and patios, ensuring that all your outdoor surfaces are protected. Discover our comprehensive range and learn more about crafting the ideal epoxy floor.
