U.S. Army Tested 5 Garage Floor Tiles. Here’s the One That Held Up.
Posted by ArmorGarage LLC on Oct 19th 2026
U.S. Army Tested 5 Garage Floor Tiles. Here's the One That Held Up.
In 2008 the U.S. Army Marksmanship Unit at Fort Benning put five interlocking floor tiles — RaceDeck, Swisstrax, a Lowe's tile, a Home Depot tile and our Heavy Duty T-Joint — on the floor of a weapons test facility and let the work decide. Their letter says our tile was “the only product tested that will maintain a professional appearance and hold up to the extensive wear and tear generated in the weapons test facility.” Below: what was tested, what each tile is made of, what they cost today, and why the result came out the way it did.
Key takeaways
- Five tiles, one survivor. The Army's December 2008 letter names RaceDeck, Swisstrax, Lowe's and Home Depot tiles as tested alongside ours; ours was the one that held up.
- The difference is construction, not brand. Four of the five are rigid polypropylene with a ribbed, mostly-open underside. Ours is 100% solid PVC, top to bottom.
- You can measure it on a scale. By the manufacturers' own spec sheets, RaceDeck Diamond is 15 oz of plastic per square foot and Swisstrax Ribtrax Pro about 14 oz. Our Heavy Duty tile is about 25 oz per square foot — roughly 1.7× the material under your tires.
- You pay for it. Ours runs about $5.95/sq ft; RaceDeck about $4–6, Swisstrax about $5, big-box polypropylene about $3. If your garage holds a sedan and a lawnmower, the cheaper tiles may be all you need. If it holds a lift, a truck or jack stands, read on.
Who ran the test, and why it's a hard one
The U.S. Army Marksmanship Unit (USAMU) is the Army's competitive shooting and small-arms development unit, based at Fort Benning (now Fort Moore), Georgia. Its weapons test facility is where rifles and pistols are built, tuned, fired and torn down — which makes the floor a worst case for any tile: steel tools and parts dropped from bench height, loaded carts and heavy equipment rolled across the same paths all day, solvents and gun oil, and constant foot traffic from people who are not thinking about the floor. The unit also wanted the facility to look professional, so a tile that merely survived while scuffing, cracking and discoloring wasn't going to pass.
Rather than buy on brochure claims, they laid out samples from five suppliers and used them. We weren't told the exact duration, and we won't invent one; the letter speaks for itself, and you can read it below.

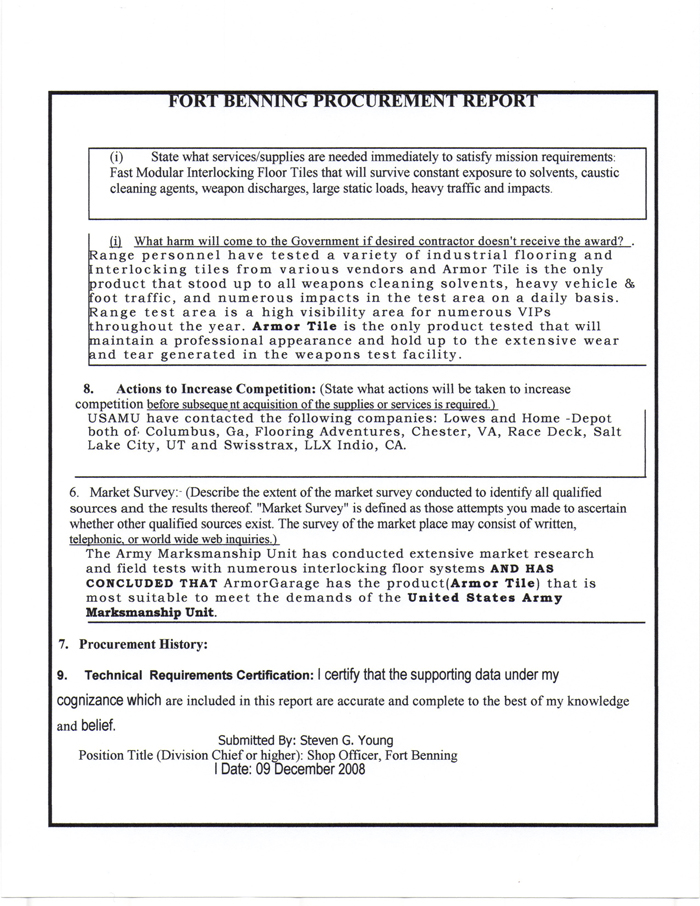

The letter · December 9, 2008
“ArmorGarage tiles were the only product tested that will maintain a professional appearance and hold up to the extensive wear and tear generated in the weapons test facility.”
— U.S. Army Marksmanship Unit, Fort Benning, GA, after testing RaceDeck, Swisstrax, Lowe's and Home Depot tiles against ours. The tile they chose is the same 1/4″ solid PVC Heavy Duty T-Joint tile we make today.
Click the letter to read it full size.
The five tiles, side by side
The letter names brands, not model numbers, and the big-box tiles sold in 2008 have been renamed since. The table shows each brand's current mainstream garage tile with the specs from its own published data sheet, and street prices as of October 2026 (RaceDeck and Swisstrax from authorized dealers; big-box from Home Depot's site). Prices move; check them the day you buy.
| Tile | Material & construction | Size × thickness | Plastic per sq ft* | Published load rating | Price / sq ft | Army result |
|---|---|---|---|---|---|---|
| ArmorGarage Heavy Duty T-Joint Made in USA |
100% solid PVC, solid top to bottom; flexible, bridges cracks | 20.5″ × 20.5″ × 1/4″ | ≈ 25 oz 4.6 lb per 2.92 sq ft tile |
160,000 lb roll-over / 80,000 lb static | from $5.95 | Held up — selected |
| RaceDeck Diamond Made in USA |
High-impact polypropylene; solid top over a ribbed support grid | 12″ × 12″ × 1/2″ | 15 oz per spec sheet |
Marketed at 80,000 lb+ rolling load; spec sheet lists DIN 18032-02 pass, >250 psi | about $4–6 | Did not hold up |
| Swisstrax Ribtrax Pro | UV-stabilized polypropylene; open ribbed top, channeled underside for drainage | 15.75″ × 15.75″ × 3/4″ | ≈ 14 oz 23.5 oz per 1.72 sq ft tile |
3,120 psi compression (no lb rating published) | about $5 | Did not hold up |
| Home Depot house-brand tile e.g. GarageTrac Diamond today |
Polypropylene; thin top over open rib grid | 12″ × 12″ × ~1/2″ | not published | varies by SKU | about $3 | Did not hold up |
| Lowe's house-brand tile | Polypropylene; thin top over open rib grid | 12″ × 12″ × ~1/2″ | not published | varies by SKU | about $3 | Did not hold up |
*Plastic per square foot = the manufacturer's published tile weight divided by the tile's area. It's the simplest honest proxy for how much material is actually under a load, and it's the one number brochures never put next to each other. RaceDeck and Swisstrax figures are from their own spec sheets; ours is a shipping weight you can confirm on any scale.
Why the solid PVC tile won
It wasn't magic and it wasn't marketing. Four of the five tiles share one design: a hard polypropylene top skin held up by a grid of thin ribs, with air in between. That design is light, cheap to mold and great for drainage, and it's perfectly good under a passenger car. It has three weaknesses the weapons facility found in a hurry:
- Point loads land on ribs. A jack stand, a lift pad, a dropped receiver or the caster of a loaded cart puts its whole weight on whichever rib happens to be under it. Ribs crack; the skin above them dents or breaks through. A solid tile has no ribs to find — the load spreads through a continuous 1/4″ of PVC into the slab.
- Polypropylene is hard and brittle; PVC is tough and flexible. Hard plastic chips at the edges, cracks in cold weather, and rocks on an uneven slab (that's the click-clack you hear on hollow tiles). Solid PVC flexes to follow the floor, absorbs impact, and goes quiet underfoot.
- Appearance over time. Open-rib tops collect brass, grit and metal shavings in the slots; thin skins scuff through to a different color. The Army's letter specifically called out “maintain a professional appearance” — a floor that looks tired in a year failed their test even if it was still in one piece.
Solid PVC also shrugs off the chemicals a shop throws at it — oil, gasoline, brake fluid, battery acid, solvents, road salt — and bridges cracks and divots up to 3″ wide without telegraphing them through. The trade-off is weight and price: more material costs more to make and more to ship, which is exactly why most of the market went the other way.
Are RaceDeck and Swisstrax bad tiles? No.
They're well-made polypropylene tiles with huge color ranges, and for a show garage with a sedan or two, good drainage and a strict budget, either is a reasonable buy. Swisstrax's open rib design is the better choice if you live where cars drip snowmelt every night and you want the floor to dry itself. Where they fall short is the same place they fell short at Fort Benning: concentrated loads, impact and years of hard use. If that describes your floor, buy solid.
So which garage floor tile should you buy?
Match the tile to what rolls across it, not to the brochure:
- Cars, SUVs, a motorcycle, a rolling tool chest — a hollow-rib polypropylene tile will do the job. So will our Light Duty T-Joint at 3/16″ solid PVC, quieter and crack-free for about the same money.
- Pickups, a 2- or 4-post lift, floor jacks and jack stands, a shop or dealership bay — this is the Army's floor. The Heavy Duty T-Joint, 1/4″ solid PVC, 160,000 lb roll-over.
- Forklifts, heavy equipment, a showroom that wants a near-seamless look — the Super Heavy Duty Hidden Seam, 5/16″, our best seller.
Every tile we make is 100% solid PVC, made in the USA and guaranteed for life — the same way we made the one the Army picked in 2008. Full lineup, colors and the planning guide are on our Garage Floor Tiles page. Still weighing tiles against epoxy? See Garage Epoxy vs Tiles vs Mats.
Questions people ask about this test
Which garage floor tile did the U.S. Army choose?
The U.S. Army Marksmanship Unit at Fort Benning chose the ArmorGarage Heavy Duty T-Joint tile — a 1/4″, 100% solid PVC interlocking tile — for its weapons test facility after testing it against RaceDeck, Swisstrax, Lowe's and Home Depot tiles. Their December 9, 2008 letter called it the only product tested that maintained a professional appearance and held up to the facility's wear and tear.
Are RaceDeck and Swisstrax tiles hollow?
They're not sealed hollow boxes, but they aren't solid either: both are a polypropylene top surface supported by a grid of thin ribs with open space between them. That's why a 12″ RaceDeck tile weighs 15 oz and a 1.72 sq ft Swisstrax tile weighs 23.5 oz, while a solid PVC tile of the same area weighs 1.7× as much. Under a tire the difference is small; under a jack stand or a lift pad it's the whole story.
What's the difference between PVC and polypropylene garage tiles?
Polypropylene is a hard, rigid plastic molded as a thin top over ribs: light, inexpensive, drains well, but brittle under point loads and in cold, and it rocks and clicks on uneven slabs. Solid PVC is a tougher, flexible plastic molded as one solid piece: heavier and more expensive, but it spreads loads, absorbs impact, bridges cracks and stays quiet. For cars either works; for lifts, trucks, jacks and shop use, solid PVC is the one that lasts.
How much weight can garage floor tiles hold?
Published ratings range from no number at all (most big-box tiles) to 80,000 lb rolling load (RaceDeck's marketing) to 160,000 lb roll-over and 80,000 lb static for our 1/4″ Heavy Duty solid PVC tile. The rating that matters is static point load — what a jack stand or lift pad does — and it's the one hollow-rib tiles rarely publish. If a spec sheet doesn't list it, assume the tile isn't meant for it.
Is the tile the Army tested still the same tile you sell?
Yes. The Heavy Duty T-Joint is the same 20.5″ × 20.5″ × 1/4″ 100% solid PVC tile, made in the USA, with the same full-perimeter T-joint interlock and the same lifetime guarantee. We've added colors and a hidden-seam version since; we haven't thinned the tile.
Put the Army's tile in your garage
Send us your square footage and what you park on it and we'll quote the right tile, color and ramp edges — usually the same day. Free shipping on orders over $1,500.
RaceDeck, Swisstrax, Ribtrax, GarageTrac, Lowe's and The Home Depot are trademarks of their respective owners, which are not affiliated with ArmorGarage. Competitor specifications are taken from their published data sheets; prices are retail figures observed October 2026 and will change.
